A comparative study of the electrical properties of undoped schottky junction In/a-Si:H/AZO-Coated-Glass and In/SiNWs/AZO-Coated-Glass Solar Cells

Dr Abayomi Adebola Stephen

Abstract


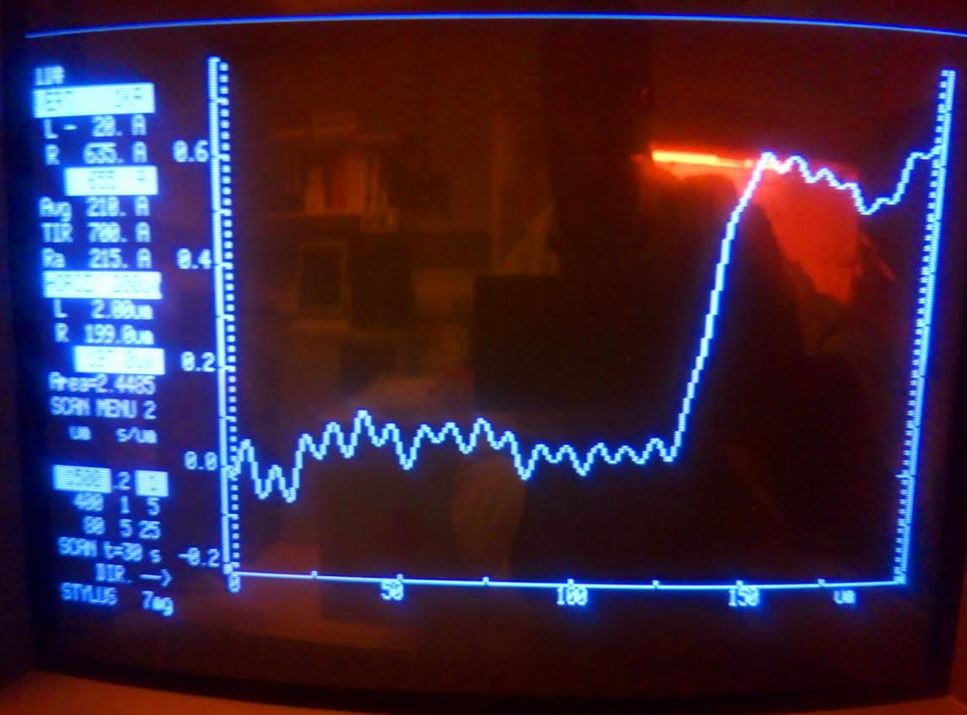

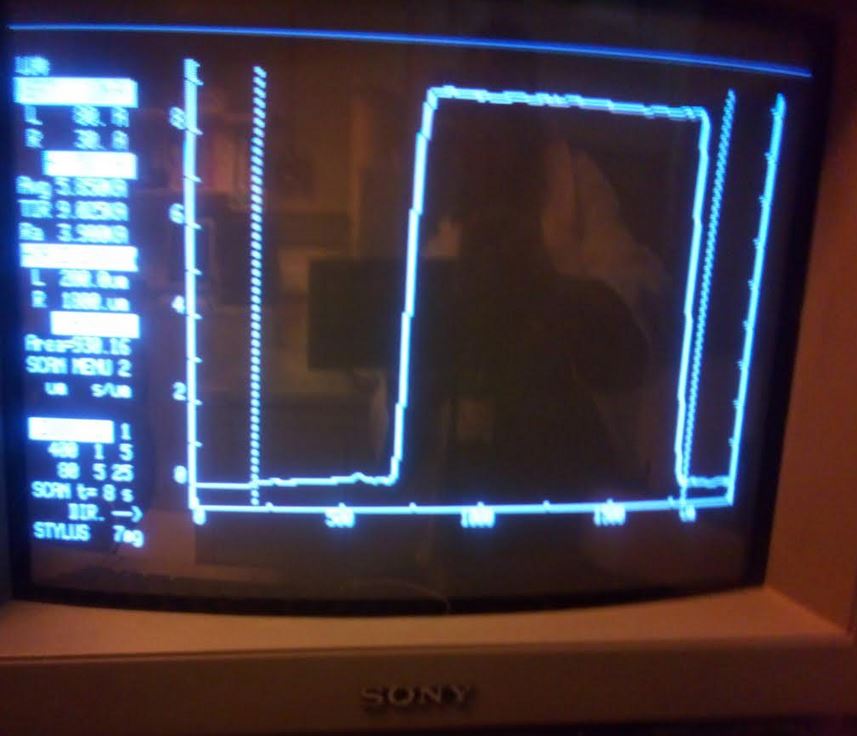

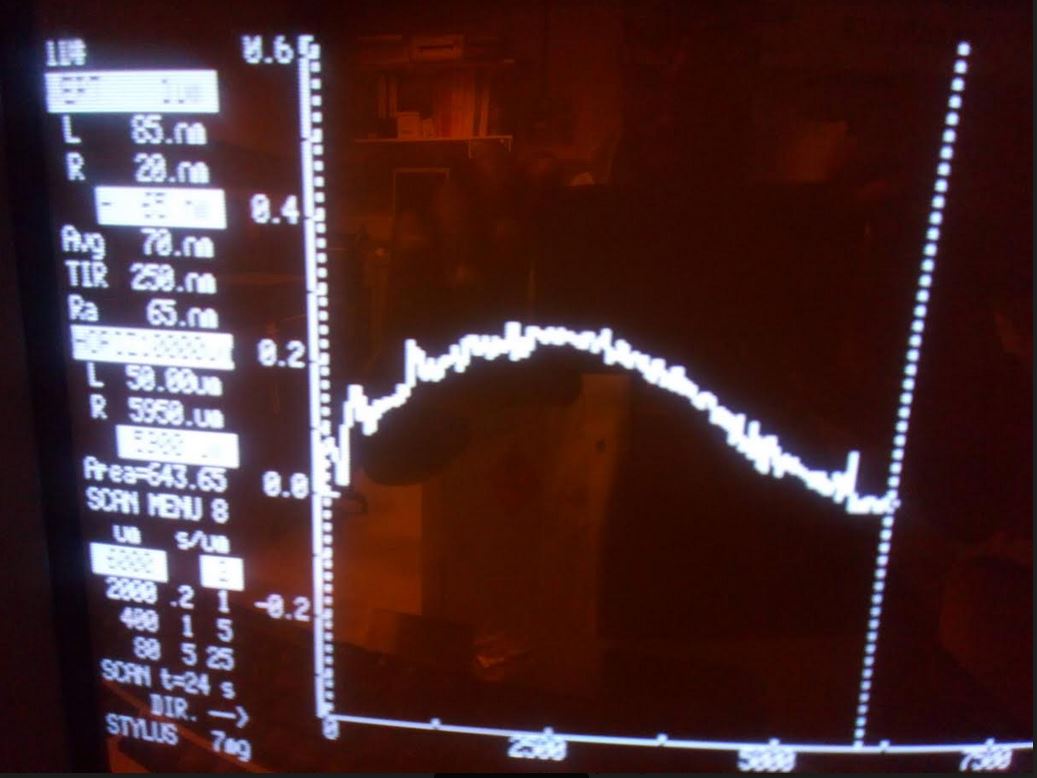

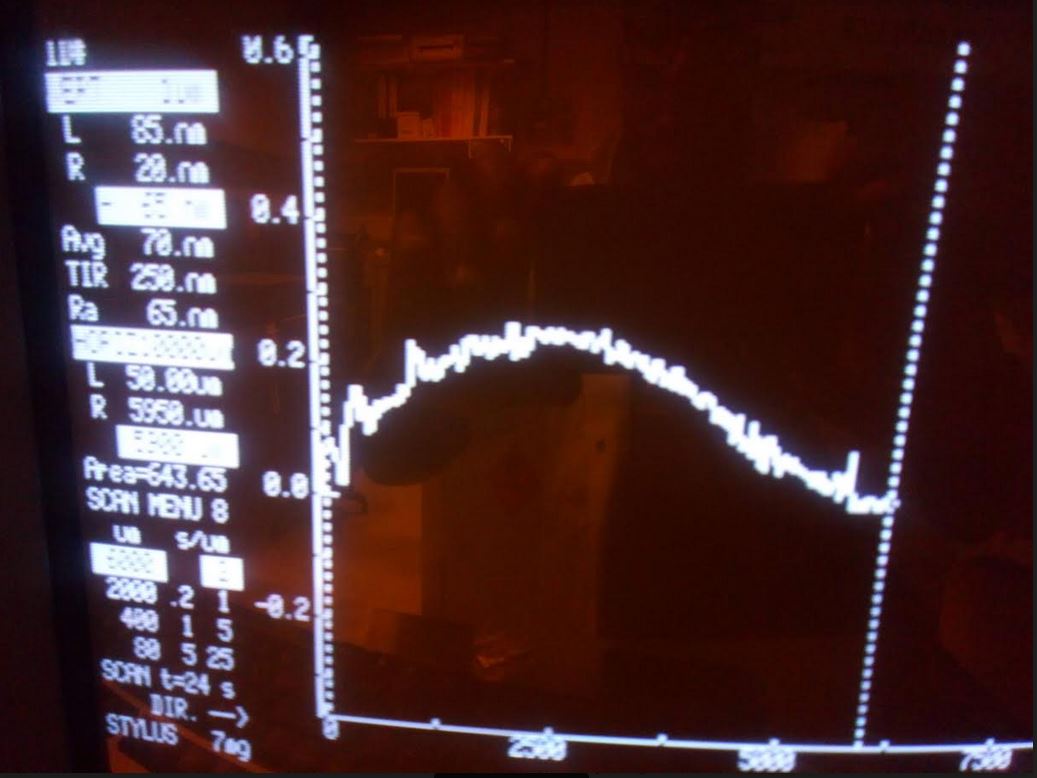

Plasma enhanced chemical vapour deposition (PECVD) is used to synthesise undoped hydrogenated amorphous thin film silicon (a-Si:H) and silicon nanowire (SiNWs) array for solar cell applications. Indium metal is used as the top contact electrode in Schottky junction configured solar cells devices represented as In/a-Si:H/AZO-coated glass and In/SiNWs/AZO-coated glass respectively. For six solar cell devices on each sample, its observed that charge carrier trap states are observed under dark conditions, despite indium metal's farther position on the various impurities in silicon mid-band gap and minimum temperature for Vapour-Liquid-Solid (VLS) Silicon nanowire growth, which is expected to not produce charge carrier trap states. In/SiNWs/AZO-coated glass solar device demonstrated  non-rectifying and ohmic  behaviour with no significant measurable solar cell device parameters, while In/a-Si:H/AZO-coated glass showed rectifying and Schottky behaviour with a reported average values of short circuit current (ISC) of (9.522 ± 0.82)A, open circuit voltage (VOC) of (0.305 ± 0.05)V, and ideality factor (n) of (4.7 ± 0.32).


Keywords


Indium,PECVD,Hydrogenated amorphous silicon and silicon nanowires

Full Text:

PDF

References


Sze S.M, Physics of Semiconductor Devices, 2nd ed. Wiley, New York, 1981.

Maestrini A, Thomas B, Wang H , Jung C, Treuttel J , Jin Y, et al., Schottky Diode-Based Terahertz Frequency Multipliers and Mixers, Comp. Rendus Phys., vol. 11, no. 7, pp. 480-495, 2010.

Nadri S, Moore C M, Sauber N D , Xie L , Cyberey M E, Gaskins J T, et al., Thermal Characterization Of Quasi-Vertical GaAs Schottky Diodes Integrated on Silicon, IEEE Trans. Electron Devices, vol. 66, no. 1, pp. 349-356, 2019.

Kong X , Zhang L, Liu B, Gao H, Zhang Y, Yan H, et al., Graphene/Si Schottky Solar Cells: A Review of Recent Advances and Prospects, RSC Adv., vol. 9, no. 2, pp. 863-877, 2019.

Reddy V.R, Electrical properties of Au/polyvinylidene fluoride/n-InP Schottky diode with Polymer Interlayer, Thin Solid Films, vol. 556, pp. 300-306, Apr. 2014.

Zhao B , Wang F, Chen H, Wang Y, Jiang M, Fang X, et al., Solar-Blind Avalanche Photodetector Based On Single Zno-Ga₂O₃ Core-Shell Microwire, Nano Lett., vol. 15, no. 6, pp. 3988-3993, Jun. 2015.

Chang K.E, Kim C, Yoo T. J , Kwon M.G , Heo S, Kim S. Y, et al., High-responsivity Near-Infrared Photodetector using Gate-Modulated Graphene/Germanium Schottky junction", Adv. Electron. Mater., vol. 5, no. 6, 2019.

Clemens W, "Polymer electronics" in Technology Guide: Principles—Applications—Trends, Berlin, Germany: Springer, pp. 84-87, 2009.

Hernandez-Como N , Rivas-Montes G, Hernandez-Cuevas F.J, Mejia I, Molinar-Solis J.E and M. Aleman, Ultraviolet Photodetectors Based on Low Temperature Processed ZnO/PEDOT:PSS Schottky barrier diodes, Mater. Sci. Semicond. Process., vol. 37, pp. 14-18, 2015.

Ana R, Juan S.E, Patricia N and Antonio C.G, Less-Studied Technology-Critical Elements (Nb, Ta, Ga, In, Ge, Te) in the Marine Environment: Review on Their Concentrations in Water and Organisms. Front. Mar. Sci., pp.1-9, 2019.

Schmidt V, Wittemann J.V, Senz S, and Go¨sele U, Silicon Nanowires: A Review on Aspects of Their Growth and Their Electrical Properties. Adv. Mater .vol. 21, pp.2681–2702, 2009.

J.R Davis, et.al, Impurities in Silicon Solar Cells. IEEE Trans. Electron Devices vol.27, pp.677–687, 1980.

Kessel E, Remote Plasma Deposition of Hydrogenated Amorphous Silicon. Plasma Processes, Film Growth and Material Properties. Eindhoven University of Technology, pp.1-8, 2000.

Kelly M. J, Todd A.G, Sisson M. J and Wickenden D. K, Contacts Between Amorphous Metals and Semiconductors Electronics Letters, 1983.

Nemanich R.J, Semiconductors and Semimetals, Academic Press, Orlando, p.375, 1984.

Chen I and Lee S: Proceedings of the 9th International Conference on Amorphous and Liquid Semiconductors. Journal of Physics.pp.1045, 1982.

Martins R ,Ferreira L, Carvalho C.N, Maçarico A and Guimarães L: Amorphous Silicon Technology. Department of Materials Science, Faculty of Science and Technology of New University of Lisbon, Portugal.pp.153-158,1982.

Martins R, Ferreira L, Carvalho C and Guimarães L, Journal of Non-Cryst. Solids,pp137-138 and pp.757-760, 1991.

Luderer C, et.al, Contact Resistivity of TCO/a-Si:H/c-Si Heterojunctions. Presented at the 36th European PV Solar Energy Conference and Exhibition, Marseille, France 2019.

Hosono H, et.al, Handbook of Transparent Conductors. Springer books, Berlin, 2011.

Kasap S and Capper P, Transparent Conductive Oxides, Springer Handbook of Electronic and Photonic Materials, pp.1391-1403, 2017.

Kristinsdottir L.H Characterization of Semiconductors by Capacitance Methods. Department of Experimental Physics, University of Iceland.pp1-14, 2007.

Cotfas D.T: Methods and Techniques to Determine the Dynamic Parameters of Solar Cells: Renewable and Sustainable Energy Reviews, vol.61, pp.213-221, 2016.

Chen D, Liu S, Liu Y, He C and Yin P: Study on Uniformity Control of Amorphous Silicon Thin Films by PECVD. School of Optoelectronic Information,University of Electronic Science and Technology of China; Chengdu Yanbai Technology Co.Ltd.

Tadatomo K, Okagawa H, Ohuch Y, Tsunekawa T, Jyouichi T, Imada Y, Kato M, Kudo H and Taguchi T: High Output Power InGaN Ultraviolet Light-Emitting Diodes Fabricated on Patterned Substrates Using Metalorganic Vapor Phase Epitaxy. Phys Status Solidi vol.188:121,2001.

Lee J.H, Lee D.Y, Oh B.W: Comparison of Ingan-Based LEDs Grown on Conventional Sapphire and Cone-Shape-Patterned Sapphire Substrate. IEEE Trans Electron Devices vol.57:157,2010.

Wilfred G.J, et.al, Methods of Deposition of Hydrogenated Amorphous Silicon for Device Applications. Thin Films and Nanostructures. Science Direct, vol. 30, pp.1-215, 2002.

Hama T, et.al., Hydrogen Content Dependence of the Optical Energy Gap in Hydrogenated Amorphous Silicon Journal on Crystalline Solids, vol. 133, pp.59-60. 1983

Tauc, J : Optical Properties of Solids Edited by Abeles, F . North-Holland Publication Co, pp277-313, 1972.

Bao H, Optical Absorption Enhancement in Disordered Vertical Silicon Nanowire Arrays for Photovoltaic Applications. Optical Letters, vol.35, pp.3378–3380.2010.

Street R.A, William S.W and Christopher P, Analytic Model for Diffuse Reflectivity of Silicon Nanowire Mats. Nano Letters, vol.9, pp.3494–3497, 2009.

Pankove J.I and Carlson D.E, Electrical and Optical Properties of Hydrogenated Amorphous Silicon. Annual Review of Materials Science, vol.10, pp.43-63, 1980.

Zhong H, Anran G, Guohui G, Lei W, and Jiang Y, The Enhanced Light Absorbance and Device Application of Nanostructured Black Silicon Fabricated by Metal-Assisted Chemical Etching Nanoscale Research Letters.vol.11, pp.1-6, 2016.

Zebin L, Zhonghang W, Jiaqi J , Kongduo H, Zhenliu C, Xilu Y , Hang Y, Qiongrong O and Rongqing L. Enhanced Work Function of Al-Doped Zinc-Oxide Thin Films by Oxygen Inductively Coupled Plasma Treatment, Plasma Science and Technology,vol.16, pp.79-82, 2014.

Tsay C.Y and Hsu W.T. Comparative Studies on Ultraviolet-Light-Derived Photo Response Properties of ZnO, AZO, And GZO Transparent Semiconductor Thin Films, .PMC .Materials, Vol. 10, pp.1-12, 2017.

G Drewelow, Reed A, Stone C, Roh K, Jiang C.T, Thi-Truc L.N, Noh H, Park H and Lee S. Work Function Investigations on Al-doped ZnO for Band-Alignment in Electronic and Optoelectronic Applications. Applied Surface Science, vol.484, pp.990-998, 2019.

Corpus-Mendoza A.S, De Souza M.M and Hamelmann F .Transport Mechanisms and Effective Schottky Barrier Height of ZnO/a-Si:H and ZnO/µc-Si:H Heterojunction Solar Cells. Journal of Applied Physics,vol.114,pp.184505-1 -184505-6, 2013.

Suchea M, Christoulakis S, Katsarakis N, Kitsopoulos T.N and Kiriakidis G. Comparative Study of Zinc Oxide and Aluminium Doped Zinc Oxide Transparent Thin Films Grown by Direct Current Magnetron Sputtering. Thin Solid Films 515(16):pp.6562-6566, 2007.

Tung R.T. The Physics and Chemistry of the Schottky Barrier Height. Applied Physics Reviews vol1, pp.11304-11354, 2014.

Schropp R and Zeman M, Amorphous and Microcrystalline Silicon Solar Cells. Modelling, Materials and Device Technology. Kluwer Academic Publishers, pp44-45, 1998.

Mikolášek M, Jakaboviš J, Andok R, Řeháček V and Harmatha L, Capacitance Analysis of the Structures with the a–Si:H(i)/c–Si(p). Heterojunction for Solar-–Cell applications, Journal of Electrical Engineering, vol.65, pp. 254-258, 2014.

Laughton, M. A. (2003). "17. Power Semiconductor Devices". Electrical engineer's reference book. Newness. pp. 25–27. 2011.

Holman Z, Descoeudres A, Barraud L, Seif J.P, Zicarelli F, De Wolf S and Baliff C. Increasing Short-Circuit Current in Silicon Heterojunction Solar Cells. Conference Record of the IEEE Photovoltaic Specialists Conference, 2011.

R.Islam, et.al., Optimization of Selective Contacts in Si Heterojunction Photovoltaic Cells Considering Fermi Level Pinning, IEEE Transactions on Electron Devices,vol.63, pp.4788-4795,2016.

Fabiano Corsetti and Arash Mostofi, Gold Defects in Silicon Negative-U Properties For Substitutional Au in Si, Euro physics Letters vol.105, pp.57006, 2014.

Palmstrøm C.J, Contacts for Compound Semiconductors: Ohmic Type. Encyclopedia of Materials: Science and Technology (Second Edition). pp.1581-1587,2001.

Ukauskas H.D and Gavriushin V. The Metal-Semiconductor Junction. Schottky Diode and Ohmic Contacts. Vilniaus Universities Semiconductor Physics. Department of Physics, pp1-5, 2002.

Ofuonye B, Lee J, Yan M, Sun C, Zuo J.M and Adesida I. Electrical and Microstructural Properties of Thermally Annealed Ni/Au and Ni/Pt/AuSchottky Contacts on AlGaN/GaNheterostructures. Semiconductor Science and Technology. Semicond. Sci. Technol, vol.29 pp.1-2, 2014.

Portland State. The Laboratory of Nanoelectronics/Solar Cells. [Internet].2017 [cited 2023 Jan 7].Available from: https://www.pdx.edu/nanoelectronics/solar-cells

Stelzner Th, Pietsch M, Andra G, Falk F, Ose E, and Christiansen S. Silicon Nanowire-Based Solar Cells. Institute of Photonic Technology, Max-Planck-Institute of Microwave structure Physics,Weinberg.Germany,pp.1-3,2018.




DOI: https://doi.org/10.23954/osj.v8i2.3349
